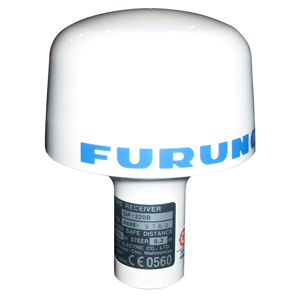

Furuno's BBWGPS WAAS/GPS Receiver Antenna makes any NavNet product capable of receiving WAAS and GPS information. Now there is no need to have a separate unit to get your WAAS/GPS fix. This WAAS/GPS Receiver Antenna has everything you need built-in, and it delivers accuracy better then 3 meters by decoding GPS correction signals from the WAAS (Wide Area Augmentation System).

In addition to its WAAS capability, the antenna has a compact 12-channel GPS Receiver that provides accurate and reliable position fixing. Simply connect the antenna to any NavNet display and you can display WAAS/GPS information on one display or the entire NavNet network.

Standard Features

• WAAS (Wide Area Augmentation System) Receiver

• 12 Channel, All-in-View Parallel Tracking GPS Receiver

• Up to 900 Knot Tracking Velocity

• 90 Second Cold Start Acquisition, 20 Second Warm State Acquisition

• 3M Accuracy or higher (95% of the time, SA off)

• WAAS On/Off Selectable *

Shipping Information

• 5 Lbs., 1 Carton

Power Requirements

• 12 VDC at 100 mA

Notes

1. *For more information on WAAS, please check the USCG Navigational Center web site:

   www.navcen.uscg.gov
