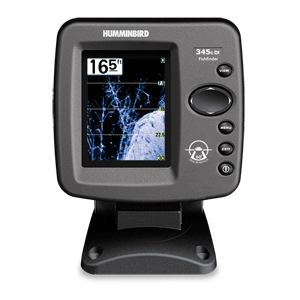

345c DI
#408440-1

3.5" high-resolution 320Vx240H LCD color display with backlighting. Exclusive DualBeam PLUS™ technologyprovides 16° and 25° beams to see below the boat with better structure and bottom hardness definition. Use Down Imaging® to reveal cover and structure detail below your boat.

3.5" Display
320V x 240H, 256 Color

Down Imaging®
455kHz / 75° @ -10db
800kHz / 45° @ -10db

DualBeam PLUS™ w/ SwitchFire™
200kHz / 25° @ -10db
455kHz / 16° @ -10db

Depth
250 ft (DI), 600 ft

DualBeam PLUS™
4000 W (PTP)

Sonar Coverage
500 W (RMS)
