345c Portable

Portable Sonar Only

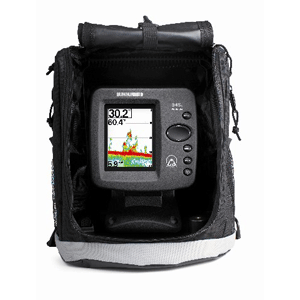

The 345c Portable features a brilliant color 320V x 240H 3.5" display and advanced DualBeam PLUS sonar with 2400 Watts PTP power output, all in a soft-sided carry case. Gel Cell Battery and charger included.

ADVANCED SONAR FEATURES

• Instant Image Update
• Real Time Sonar RTS Window
• Selective Fish ID
• Sonar Echo Enhancement
• Split Screen Zoom
• TrueArch Technology
• Wide Narrow Cone Split Screen

USER-FRIENDLY TECHNOLOGY

• Custom Digital Readout Selection
• Custom View Selections
• Large Digits View
• Selectable Background
• Temperature Alarm
• Triplog- optional
• X Press Menu System

Specs:

Display Size:	3.0" diagonal
Display Pixel Matrix:	320V x 240H
Display Type:	256 Color TFT
Display Colors/Grayscale:	256 Colors
DualBeam PLUS
Sonar Coverage	200 kHz / 20 @ -10db 83 kHz / 60 @ -10db
Target Separation:	2.5 inches
Power Output (RMS):	300 Watts (RMS)
Power Output (Peak to Peak):	2400 Watts (Peak-to-Peak)
Temperature:	Included
Speed:	Capable
Backlight:	Yes
Waterproof:	Yes
Mount:	Quick Disconnect
Unit Size:	5.25" W x 7.4" H x 4" D
Mount:	Optional In-dash
Unit Size:	5.25" W x 5.12" H x 1.12" D
Transducer - Standard:	XNT-9-20-T
Transducer Mounting:	Inside Hull or Transom
Power Input:	10-20 VDC
