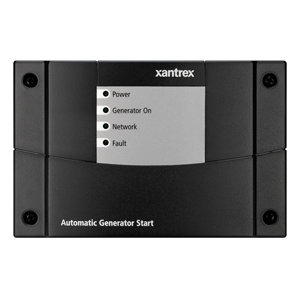

Automatic Generator Start
Part# 809-0916

Automatically Starts & Stops Generator When Power is Needed

The New Xanbus Automatic Generator Start (AGS) is a control module that automatically activate a generator to provide First Generation Freedom SW 3000 Inverter/Charger with power to recharge depleted batteries or assist with heavy loads. Having an AGS in your system means that power is available and battery banks are charged automatically so you do not have to spend time monitoring power consumption.

The AGS can be customized to suit each user's preferences. A user can define whether the generator should be activated by low battery voltage, battery state of charge, thermostat operation, or load size on the inverter. A Quiet Time setting prevents the generator from starting at inconvenient times like nightfall. LED lights display the status of the AGS, while all user defined settings are programmed through the Xanbus System Control Panel (SCP).

The AGS is configured and controlled by the Xanbus System Control Panel (SCP). The SCP provides you with comprehensive control of your AGS through a user friendly interface that is easy to understand and operate.

Important Note
Use AGS (part# 809-0916) for the first generation Freedom SW 3000 Inverter/Charger, part# 815-3000

Product Features

• External input signal for emergency shutdown option

• Quiet time periods can be set to avoid inappropriate generator operation

• Dual thermostat input available to control up-to two air conditioners

• Activated by battery voltage, state of charge or inverter load current

• Compatible with most popular generators
